C-Pillar Trim, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Remove the adhesive residue and the adhesive surface. Refer to Installation Requirements for Components with Adhesive Tape .

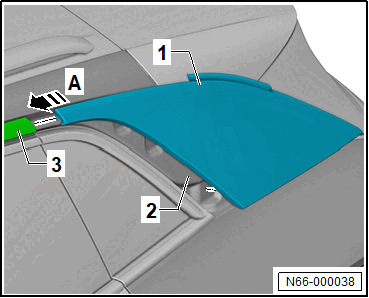

-- Guide the C-pillar trim -1- in the -direction of the arrow A- in the roof trim molding -3-.
-- Align the C-pillar trim -1- with the clips on the C-pillar -2-.
-- Press on the C-pillar trim -1- until the clips audibly engage.

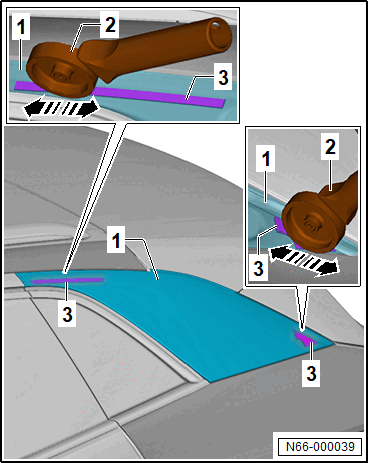

-- Press on the C-pillar trim -1- using the Roller: T40400 -2- in the area of the adhesive tape -3- in -direction of the arrow- using a force of 50 N to 70 N.
Requirement
- The minimum curing time must be complied to. Refer to Installation Requirements for Components with Adhesive Tape .
