A-Pillar Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the drip rail. Refer to Drip Rail, Removing and Installing  .

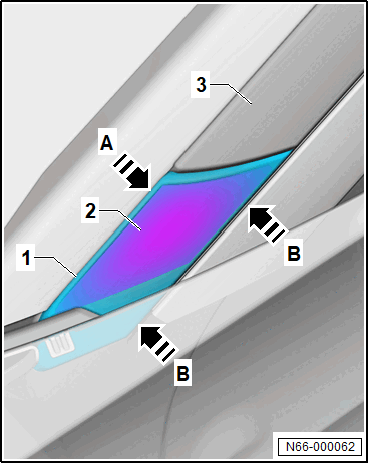

-- Heat the A-pillar cover -1- in the area near the adhesive tape -2- using the Hot Air Blower: V. A. G 1416  . Refer to Installation Requirements for Components with Adhesive Tape .

GWWN66-000062Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position a commercially available plastic wedge in the -direction of arrow A- between the A-pillar -3- and the A-pillar cover -1-.

-- When the bonded joint is loosened, remove the A-pillar cover -1- in the -direction of the arrow B- from the A-pillar -3-.
