Disintegrated Tread

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Tires with torn-out tread

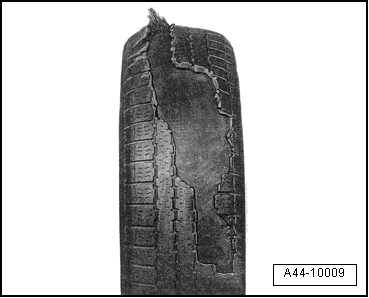

Fig 1: Identifying Tire With Torn-Out Tread
GWWA44-10009Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Such damage usually develops over a longer period of time. If an already damaged tire is exposed to high stress, the centrifugal force at higher speeds can tear components off the tire.

The illustration shows a tire with torn-out tread due to driving with insufficient tire pressure.
