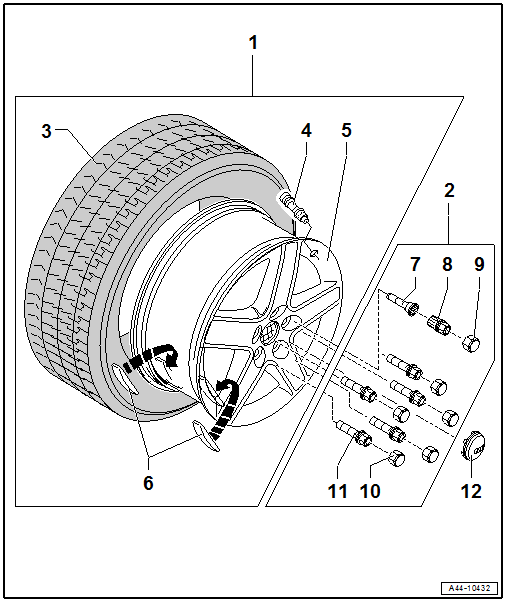

Overview - Wheel
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Wheel
- Installing the wheel. Refer to WHEEL, CHANGING .
- Wheel Bolts
- There are different versions. Refer to WHEEL BOLTS .
- Tires
- Refer to TIRE INFORMATION
- Valve/Tire Pressure Monitoring Sensor
- Always replace the valve
- Only install the valve specified in the Electronic Parts Information (ETKA).
- Refer to OVERVIEW - TIRE PRESSURE MONITORING SENSOR
- Rim
- Note the assembly instructions. Refer to TIRES, MOUNTING .
- Refer to DISC WHEEL (RIM), INFORMATION
- Refer to DISC WHEEL (RIM), STRUCTURE
- Adhesive Balancing Weights
- Maximum 60 grams per rim flange permitted
- Clean wheel where it will be adhered so it is free of dirt and grease
- Remove protective film.
- Attach balance weights to intended surfaces.
- Anti-Theft Wheel Bolt
- Note the assembly instructions. Refer to WHEEL BOLTS .
- Handling. Refer to Figure
- Anti-Theft Wheel Bolt Adapter
- Place on wheel bolt. Refer to Figure.
- Anti-Theft Wheel Bolt Cap
- Wheel Bolt Cap
- Wheel Bolts
- Tightening specification. Refer to WHEEL BOLTS TIGHTENING SPECIFICATION
.NOTE:
Make sure the correct wheel bolts are installed. Refer to the Electronic Parts Information (ETKA).
- Note the assembly instructions. Refer to WHEEL BOLTS .
- Tightening specification. Refer to WHEEL BOLTS TIGHTENING SPECIFICATION
.
- Hub Cap
- Removing and Installing. Refer to HUB CAP FOR ALLOY WHEELS WITH OPEN THREADED CONNECTION, REMOVING AND INSTALLING .
