Left Seal, Replacing: Removing

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

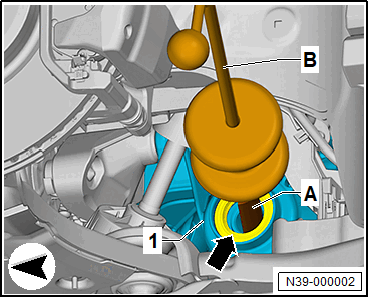

-- Remove the seal -arrow- with the Hook: VW771/37  -A- and the Slide Hammer Set: VW771  -B- from the transmission -1-.

GWWN39-000002Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
