Gear Oil, Draining And Filling: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

(Housing lettering CLUTCH OIL)

Special tools and workshop equipment required

Charging Device for AWD Clutch Coupling 2:VAS 6291A

Fig 1: Identifying Charging Device For Haldex Coupling 2 VAS6291A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Charging Device for AWD Clutch Coupling 2 - Adapter:VAS 6291/1-2

Fig 2: Device For Haldex Coupling 2 - Adapter 2VAS6291/2
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Charging Device For AWD Clutch Coupling 2 - Adapter 3:VAS 6291/3
Oil Filler - Adapter:VAS 6291A/4
Used Oil Collection and Extraction Unit:VAS 6622A

Fig 3: Identifying Used Oil Collection And Extraction Unit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Torque Wrench 1410:V.A.G 1410

Fig 4: Identifying Torque Wrench 1410 VAG1410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Draining oil

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -1-. At the same time, remove the protective plate -2-.

-- Place the Used Oil Collection and Extraction Unit:SMN372500 under the clutch chamber.

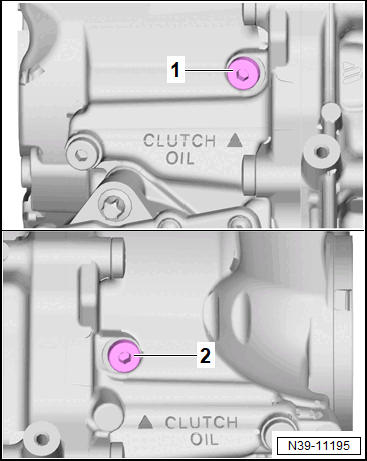

-- Remove the bolts -1 and 2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

(Housing lettering CLUTCH OIL)

-- Drain the oil completely.

-- Install the bolts -1 and 2- and tighten to the tightening specification.
