Final Drive, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the drive axle. Refer to DRIVE AXLE, REMOVING AND INSTALLING .

-- Loosen and remove the driveshaft on the final drive. Refer to DRIVESHAFT, REMOVING AND INSTALLING .

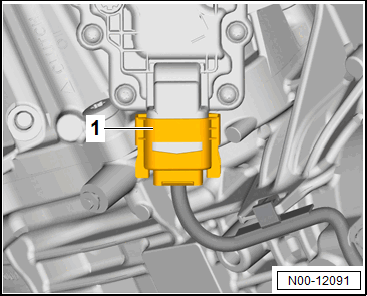

-- Disconnect the connector from the actuators -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Do not lower the subframe more than 40 mm. Refer to OVERVIEW - SUBFRAME .

-- Disconnect the breather line on the final drive.

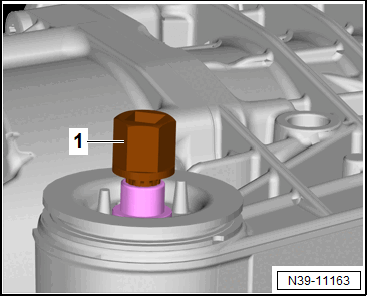

-- Use the Multipoint Socket:T10035 -1- to remove the rear bolts for the final drive from the rear axle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

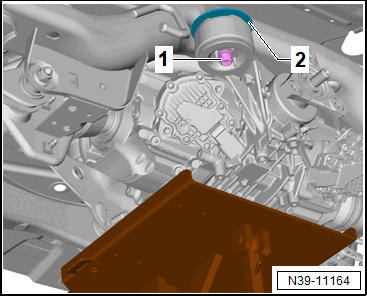

-- Remove the bolt -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the washer -2-.

-- Move back the final drive into the installation position.

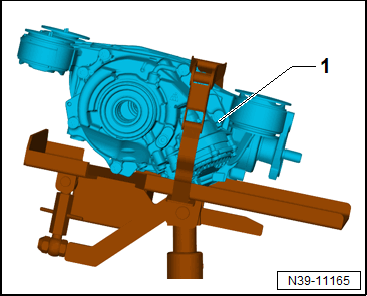

-- Secure the final drive -1- as shown with a belt.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the final drive -1- forward from the subframe.
