Rear Flexible Disc, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Attach the flexible disc to the driveshaft using new bolts.

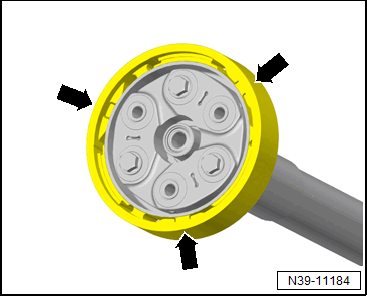

Installation position of the flexible disc with vibration damper
- The brace on the outer diameter -arrows- faces away from the driveshaft tube.
- Each of the three protruding sleeves on the flange/driveshaft and on the flange/final drive engages in the locating bores in the flexible disc.
-- When removing and installing the driveshaft, always be careful not to damage the bushing -arrow-.
