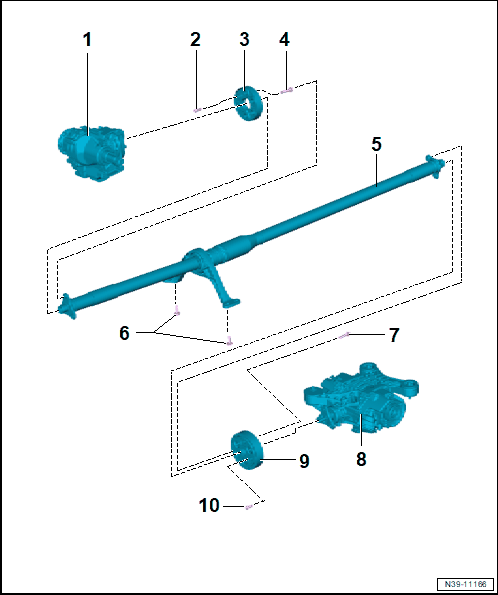

Overview - Driveshaft
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Transmission with Bevel Box
- Bolts
- Quantity: 3
- For the flexible disc to the driveshaft
- Replace after removing
- 50 Nm +90°
- Flexible Disc
- Front
- Allocation. Refer to the appropriate Electronic Parts Information.
- Bolts
- Quantity: 3
- For the flexible disc to the bevel box
- Replace after removing
- 60 Nm
- Driveshaft
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
- Bolts
- Quantity: 4
- 25 Nm
- Bolts
- Quantity: 3
- For the flexible disc to the driveshaft
- Replace after removing
- 50 Nm +90°
- Rear Final Drive
- Removing and Installing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Flexible Disc
- With vibration damper
- Allocation. Refer to the appropriate Electronic Parts Information.
- Bolts
- Quantity: 3
- For the flexible disc to the driveshaft
- Replace after removing
- 50 Nm +90°
