Front Flexible Disc, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

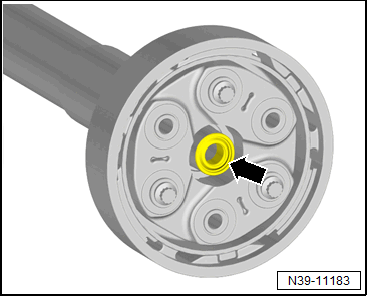

-- Check the seals in the driveshaft flange -arrow- for damage.
-- Replace the driveshaft if it is damaged.
-- Install all driveshaft parts marked in relation to each other in same position when reinstalling.
-- Do not tilt the driveshaft. Push it horizontally onto the centering pins.
-- Attach the flexible disc to the driveshaft using new bolts.
Installation Position of Flexible Disc with Shield
- The open side of the shield faces away from the driveshaft.
- Install the flexible disc so that the shield touches the driveshaft flange
-- Install the driveshaft. Refer to DRIVESHAFT, REMOVING AND INSTALLING .
