Adaptive Cruise Control (Acc), Calibrating, Static: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

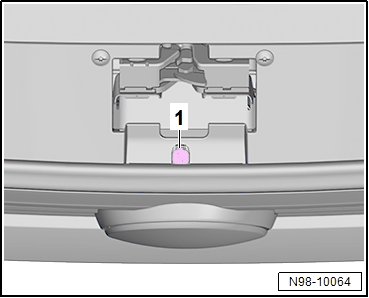

GWWN98-10064Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolt -1-.

-- The fine adjustment of the control module is performed by moving the bolt -1-.

-- Tighten the bolt -1-. Refer to Installing .
