Component Location Overview - Potential Equalization Cable

WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

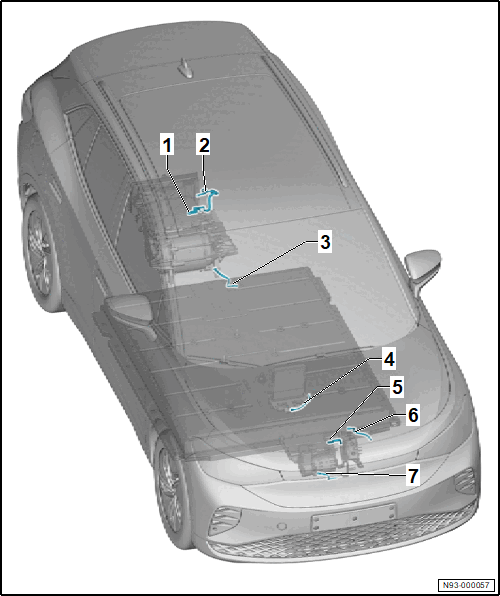

Three-Phase Current Drive -VX54- Potential Equalization
- Refer to Overview - Electric Drive Motor, Rear Motor .
High-Voltage Battery Charger 1 -AX4- Potential Equalization
- Refer to Overview - High-Voltage Battery Charger - AWD or Overview - High-Voltage Battery Charger - RWD .
High-Voltage Battery 1 -AX2- Potential Equalization
- Refer to Overview - Removed High-Voltage Battery - 82 KWH or Overview - Removed High-Voltage Battery - 48, 55, 62 KWH .
High-Voltage Heater (PTC) -ZX17- Potential Equalization
- Refer to HIGH-VOLTAGE HEATER (PTC) -ZX17-, REMOVING AND INSTALLING .
Voltage Converter -A19- Potential Equalization
- Refer to Overview - Voltage Converter - AWD or Overview - Voltage Converter - RWD .
Heating Element (PTC) 3 -Z132- Potential Equalization
- Refer to HEATING ELEMENT (PTC) 3 -Z132-, REMOVING AND INSTALLING, RWD .
A/C Compressor with Magnetic Clutch and Regulator Valve -VX81- Potential Equalization
- Refer to OVERVIEW - A/C COMPRESSOR .
