Overview - Driving/Motor Sound
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.

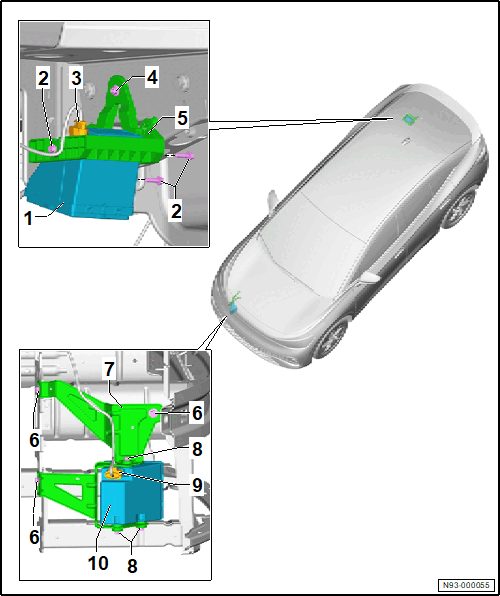

- Engine Sound Generator Module 2 -RX22-
- with Engine Sound Generator Actuator 2 -R258-
- with Engine Sound Generator Control Module 2 -J1167-
- Dependent on vehicle equipment/version
- Refer to Engine Sound Generator Module 2 -RX22-, Removing and Installing .
- Bolt
- Quantity: 3
- 8 Nm
- Connector
- Nut
- 8 Nm
- Bracket
- Bolt
- Quantity: 3
- 8 Nm
- Bracket
- Bolt
- Quantity: 3
- 8 Nm
- Connector
- Engine Sound Generator Module 1 -RX21-
- With Engine Sound Generator Actuator 1 -R257-
- With Engine Sound Generator Control Module -J943-
- Refer to Engine Sound Generator Module 1 RX21, Removing and Installing .
