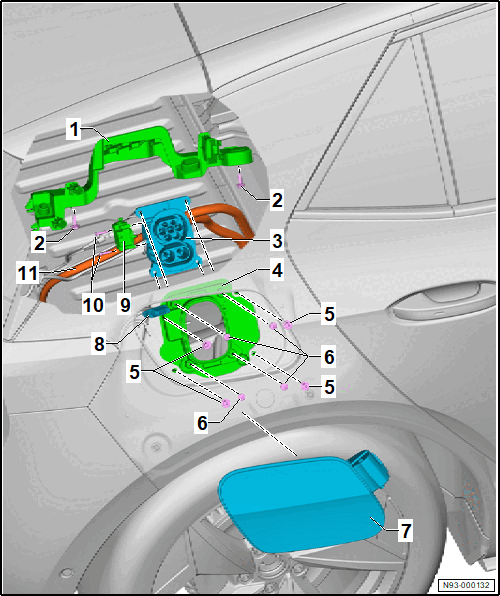

Overview - Charging Socket
WARNING: This page is about a different car, the 2022 Volkswagen ID.4 and 2021 Volkswagen ID.4. However, it is still accessible from the selected car via links, so may be relevant.
- Bracket
- Bolt
- Quantity: 2
- M6 x 20
- 8 Nm
- High-Voltage Battery Charging Socket 1 -UX4-
- With charging cable
- Refer to High-Voltage Battery Charging Socket 1 UX4, Removing and Installing .
- Bracket
- Bolt
- Quantity: 4
- M6 x 18
- 8 Nm
- Bolt
- Quantity: 4
- 8 Nm
- Charging Port Door Unit
- Refer to the appropriate service information .
- Charging Socket 1 LED Module -L263-
- Refer to the appropriate service information .
- High-Voltage Charging Connector Lock 1 Adjuster -F498-
- Bolt
- Quantity: 2
- 1.2 Nm
- Charging Cable
- With High-Voltage Battery Charging Socket 1 -UX4-
