Installation Opening Cover, Removing And Installing, PASSAT And ARTEON

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Trim Removal Wedge:3409

Fig 1: Identifying Trim Removal Wedge
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

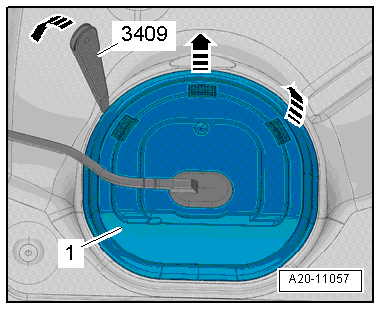

-- Unclip the sealing flange cover -1- at the tabs -arrows- using the Trim Removal Wedge:3409 .

Fig 2: Fuel Pump Cover (Under Rear/Bench Seat)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

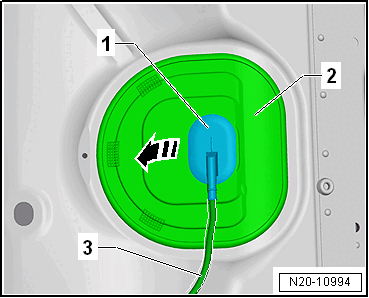

-- Unclip the grommet -1- downward out of the cover -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the cover -2- on the wiring harness -3- toward the rear.
