Fuel Level Sensor -G-, REMOVING AND INSTALLING, FWD VEHICLES

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

-- Make a note of the color coding of the cables -1- for installing later.

-- Unlock and disconnect the connectors -1- from the sealing flange.

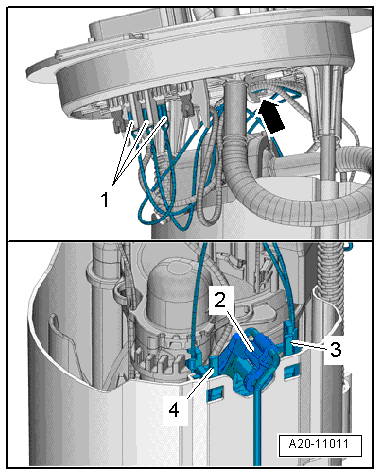

Fig 1: Identifying Fuel Level Sensor And Retainers

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage and free up the wires on the bracket -arrow-.

-- Unlock the retainers -3- and -4-.

-- Remove the Fuel Level Sensor -G- -2- upward.

-- Bend back the hooks on the connector.

Installing:

-- Install in reverse order of removal.

-- Pay attention to the color coding of the contacts.

-- Pull on the connectors to make sure they are secure.

-- Insert the Fuel Level Sensor -G- into the guide on the fuel delivery unit and push downward until it engages.

-- Install the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
