Fuel Level Sensor -G-, REMOVING AND INSTALLING, AWD VEHICLES

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .

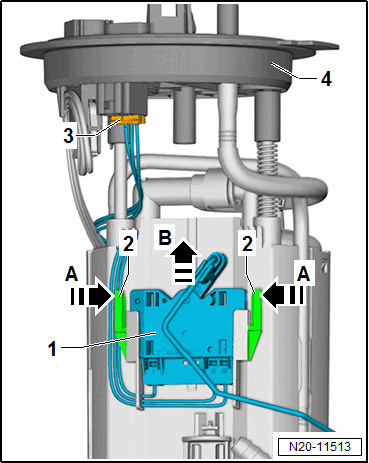

-- Unlock and disconnect the connectors -3- from the sealing flange -4-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage and free up the wires on the bracket.

-- Release the tabs -2- in the -direction of arrow A-.

-- Remove the Fuel Level Sensor -G- -1- upward in the -direction of arrow B-.

Installing:

-- Install in reverse order of removal.

-- Pull on the connectors to make sure they are secure.

-- Insert the Fuel Level Sensor -G- into the guide on the fuel delivery unit and push downward until it engages.

-- Install the fuel delivery unit. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
