EVAP Canister, Removing And Installing, Vehicles Without Fuel Tank Leak Detection: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the right rear wheel. Refer to WHEEL, CHANGING .

-- Remove the right rear wheel housing liner. Refer to OVERVIEW - REAR WHEEL HOUSING LINER .

Vehicles with connections for the lower breather lines:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

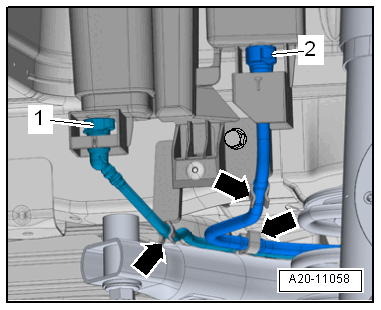

-- Unclip the breather lines -1- and -2- at the brackets -arrows-.

-- Remove the breather lines -1- and -2- from the EVAP canister. Disconnect the quick-release coupling. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

Vehicles with connections for the upper and lower breather lines:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the breather lines -2- and -3- on the EVAP canister -1-. Disconnect the quick-release coupling. Refer to CONNECTOR COUPLINGS, DISCONNECTING .

-- Unclip the breather line -3- on the EVAP canister -1-.

Continuation for All Vehicles:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

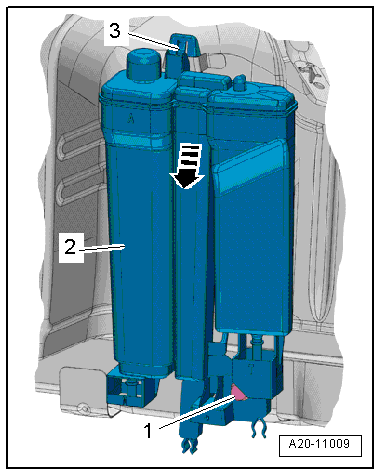

-- Remove the bolt -1-.

-- Press in the hook -3- using a screwdriver.

-- Remove the EVAP canister -2- downward from the bracket in the -direction of the arrow-.
