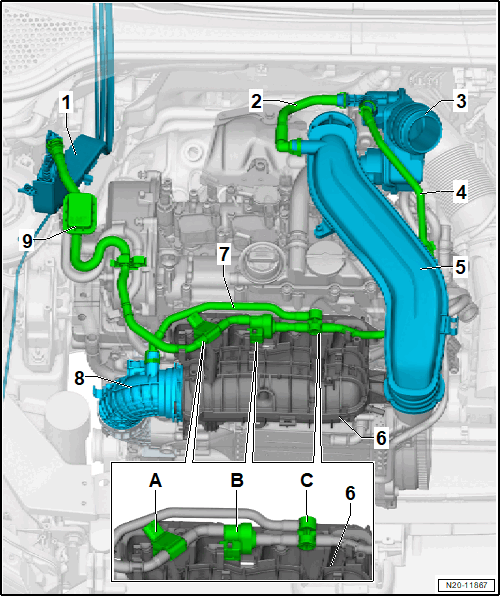

Connection Diagram - Engine/Motor Compartment EVAP System, Vehicles With 1.5L Engine From My 2020
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- 1 -
Separating Point
- For the vent/fuel lines
- 2 -
Bleeder Line
- Between the air duct pipe and the connection on the turbocharger
- 3 -
Connection on Turbocharger
- Overview. Refer to OVERVIEW - TURBOCHARGER, DNPA, DNNA, DNND AND DRNA .
- Removing and Installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING, DNPA, DNNA, DNND AND DRNA
- 4 -
Bleeder Line
- To the connection on the turbocharger
- 5 -
Air Duct Pipe
- Between the charge air cooler and the turbocharger
- Overview. Refer to OVERVIEW - CHARGE AIR SYSTEM, DNPA, DNNA, DNND AND DRNA .
- Removing and Installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING, DNPA, DNNA, DNND AND DRNA
- 6 -
Intake Manifold
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
- Removing and Installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- 7 -
Bleeder Line
- Between the separating point in the engine/motor compartment and the connection on the turbocharger
- 8 -
Air Duct Pipe
- Between the charge air cooler and intake manifold
- Overview. Refer to OVERVIEW - CHARGE AIR SYSTEM, DNFC, DNFE, DNFF, DNFG, DSFB, DSFE AND DSFF .
- Removing and Installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING, DNFC, DNFE, DNFF, DNFG, DSFB, DSFE AND DSFF
- 9 - Pulsation Damper
- A - Activated Charcoal Filter Air Flushing Pressure Sensor -GX44-
- B - EVAP Canister Purge Regulator Valve 1 -N80-
- C - Check Valve
