Accelerator Pedal Module -GX2-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

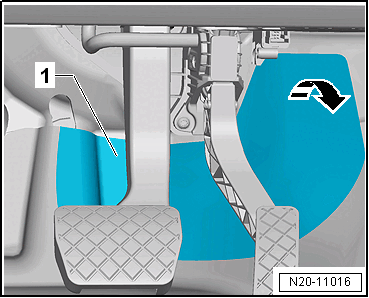

-- Fold the carpet -1- forward in the -direction of the arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release and remove the connector -2- from the Accelerator Pedal Module -GX2-.

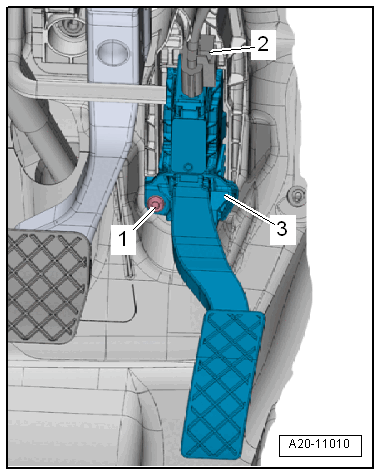

Fig 1: Accelerator Pedal Position Sensor -G79- / Accelerator Pedal Position Sensor 2 -G185- Component Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -1-.

-- Remove the accelerator pedal module -3- from the mounting.
