Overview - Final Drive

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

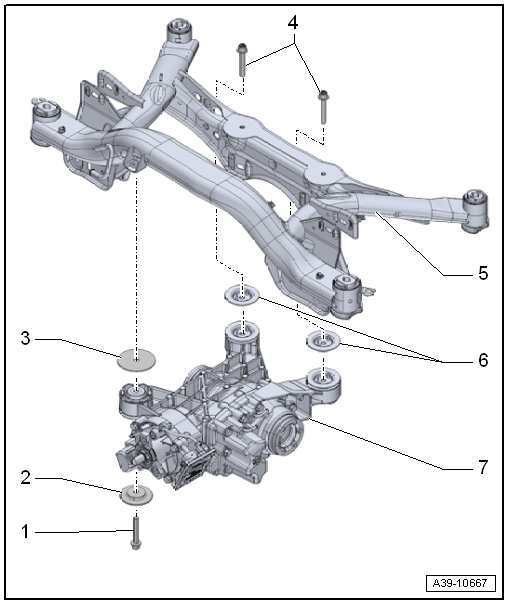

Fig 1: Exploded View Of Final Drive
GWWA39-10667Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • Always replace after removing
    • 60 Nm +180°
  2. Stop Washer
  3. Washer
    • Installation position: the bevel (small diameter) faces the subframe
  4. Bolt
    • Always replace after removing
    • Quantity: 2
    • 60 Nm +180°
  5. Rear Subframe
  6. Stop Washers
  7. Rear Final Drive
