Bonded Rubber Bushing, Removing And Installing, Final Drive 0CQ And 0BR

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Locking Pin Driver:30 - 505

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing Installer - Clutch Housing/Gearbox Bearing:VW 554

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bushing Installer - Rear Axle Beam:3128

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Rear Bushing Tool:T40033/1

Fig 1: Assembly Tool T40033
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Assembly Tool Kit - Traverse:T10030/5

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Bearing Installer - Component:3346/2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Control Arm Bearing Installer - Nut:3346/3
Internal Puller (Kukko 21-1):VAS 251 601

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Counter Support (Kukko 22/1):VAS 251 621

Fig 2: Counter Support
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Upper Rear Bonded Rubber Bushing, Removing

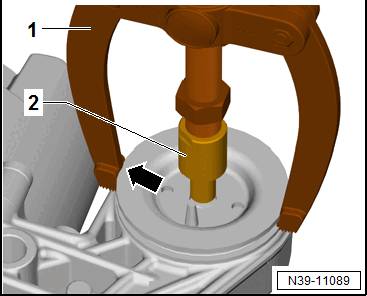

Fig 3: "Upper Rear" Bonded Rubber Bushing, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Counter Support (Kukko 22/1):VAS 251 621

2 - Internal Puller (Kukko 21-1):VAS 251 601

-- Break a piece out of the bonded rubber bushing collar -arrow- so that the Counter-Support can be positioned.

-- Insert the Internal Puller in the joint of the upper and lower bonded rubber bushing and tension.

Lower Rear Bonded Rubber Bushing, Removing

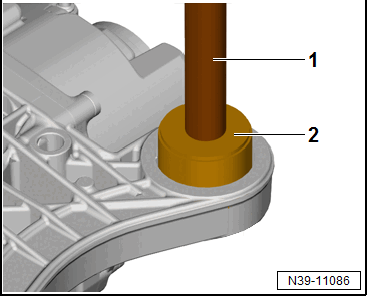

Fig 4: "Lower Rear" Bonded Rubber Bushing, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Locking Pin Driver:30-505

2 - Bearing Installer - Clutch Housing/Gearbox Bearing:VW 554

If only the bonded rubber bushing needs to be replaced, it can also be pulled out with the Counter Support (Kukko 22/1):VAS 251 621 and the Internal Puller (Kukko 21/1):VAS 251 601 . Refer to Fig 3.

Upper Rear A and Lower Rear B Bonded Rubber Bushings, Installing

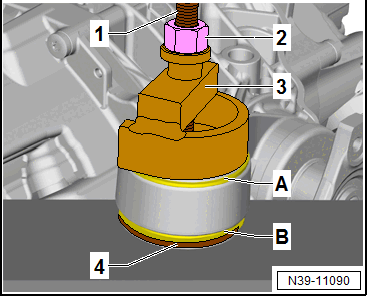

Fig 5: "Upper Rear" -A- and "Lower Rear" -B- Bonded Rubber Bushings, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Bearing Installer - Component:3346/02

2 - Control Arm Bearing Installer - Nut:3346/3

3 - Bushing Installer - Rear Axle Beam:3128

4 - Rear Bushing Tool:T40033/1

-- Place a washer with a 15 mm inner diameter and a minimum 27 mm outer diameter on the Bearing Installer - Component:3346/2 before it is installed.

Lower Front Bonded Rubber Bushing, Removing

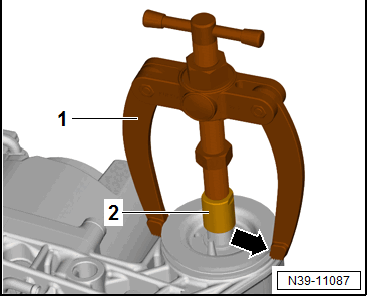

Fig 6: "Lower Front" Bonded Rubber Bushing, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Counter Support (Kukko 22/1):VAS 251 621

2 - Internal Puller (Kukko 21-1):VAS 251 601

-- Seal off both vent pipes to prevent oil from leaking out of the final drive in the following step.

-- Place the final drive on the work bench with the upper section facing down and remove the bonded rubber bushing.

-- Brake off a piece of the bonded rubber bushing collar -arrow- to attach the Counter Support.

-- Insert the Internal Puller in the joint of the upper and lower bonded rubber bushing and tension.

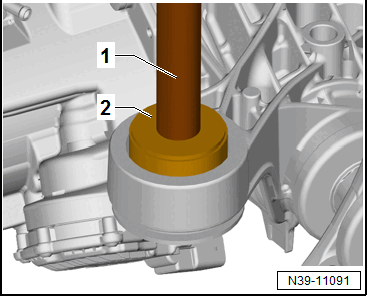

Upper Front Bonded Rubber Bushing, Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Locking Pin Driver:30-505

2 - Bearing Installer - Clutch Housing/Gearbox Bearing:VW 554

If only the bonded rubber bushing needs to be replaced, it can also be pulled out with the Counter Support (Kukko 22/1):VAS 251 621 and the Internal Puller (Kukko 21/1):VAS 251 601 . Refer to Fig 3.

Lower Front A and Upper Front B Bonded Rubber Bushings, Installing

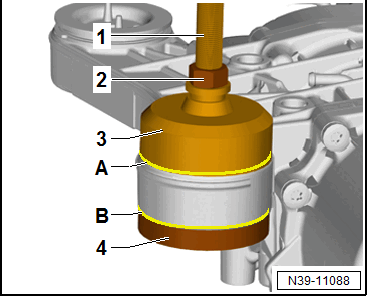

Fig 7: "Lower Front" -A- and "Upper Front" -B- Bonded Rubber Bushings, Installing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 - Bearing Installer - Component:3346/02

2 - Control Arm Bearing Installer - Nut:3346/3

3 - Assembly Tool Kit - Traverse:T10030/5

4 - Rear Bushing Tool:T40033/1

-- Place a washer with a 15 mm inner diameter and a minimum 27 mm outer diameter on the Bearing Installer - Component:3346/2 before it is installed.

Upper Rear and Lower Front Bonded Rubber Bushings, Differentiating

Fig 8: "Upper Rear" and "Lower Front" Bonded Rubber Bushings, Differentiating

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The upper rear and lower front bonded rubber bushings vary in height.

Dimension a mm	Bonded rubber bushing
22	upper rear
17	lower front

Upper Rear and Lower Front Bonded Rubber Bushing Installation Position when Installing Stop Washer 2

Fig 9: "Upper Rear" and "Lower Front" Bonded Rubber Bushing Installation Position when Installing Stop Washer -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Final drive in its installation position.

"Upper Rear" and "Lower Front" Bonded Rubber Bushing Installation Position:

The "upper rear" bonded rubber bushings OVERVIEW - SUBFRAME MOUNT, FINAL DRIVE 0CQ AND 0BR are positioned with the pins -A- facing up.
The "lower front" bonded rubber bushings OVERVIEW - SUBFRAME MOUNT, FINAL DRIVE 0CQ AND 0BR are positioned with the pins -A- facing down.

Installation of the stop washer -2-

-- Insert the pins -1- into the stop washer holes -arrows-.

The stop washer -2- is permanently connected to the bonded rubber bushing.
