All-Wheel Drive Control Module -J492-, REMOVING AND INSTALLING, GENERATION VI: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch the ignition off.

-- Place the Used Oil Collection and Extraction Unit under the rear final drive.

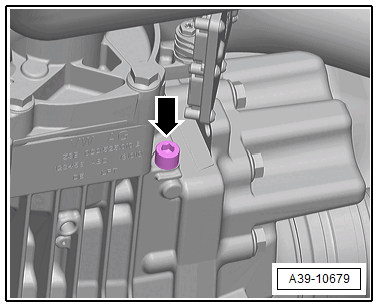

-- Remove the drain plug -arrow- and drain the oil from the all-wheel drive clutch completely.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the new drain plug -arrow- and tighten.

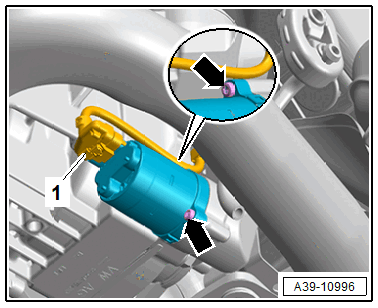

-- Release and disconnect the connector -1- for the All-Wheel Drive Control Module -J492-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place the Used Oil Collection and Extraction Unit under the coupling point of the All-Wheel Drive Control Module -J492-.

-- Remove the bolts -arrows- and remove the All-Wheel Drive Control Module -J492- out of the all-wheel drive clutch housing.
