All-Wheel Drive Control Module -J492-, REMOVING AND INSTALLING, GENERATION VI: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Install in the reverse order of removal while noting the following:

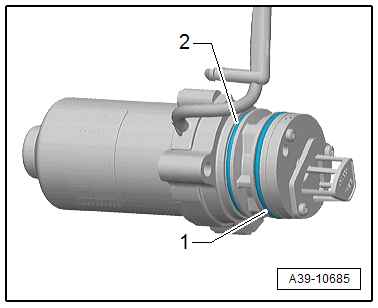

-- Coat the seals -1- and -2- lightly with oil for the all-wheel drive clutch and place it in the grooves of the All-Wheel Drive Control Module -J492-.

Fig 1: Identifying O-Rings

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the All-Wheel Drive Control Module -J492- in the all-wheel drive clutch housing and push in all the way.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts -arrows-.

-- Connect the connector -1-.

-- Fill the all-wheel drive clutch with oil and check the oil level. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .

If a new All-Wheel Drive Control Module -J492- is installed, perform a basic setting.

-- Connect the Vehicle Diagnostic Tester, to the vehicle and start the Diagnosis .

Select vehicle test
Diagnostic-capable systems
0022 All-Wheel Drive Control Module J492
0022 All-Wheel Drive Control Module, Functions
0022 - Control module, replacing

-- Follow the instructions in the Vehicle Diagnostic Tester.
