All-Wheel Drive Control Module -J492-, REMOVING AND INSTALLING, GENERATION V: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the connectors -B- and -C- from the All-Wheel Drive Control Module -A-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

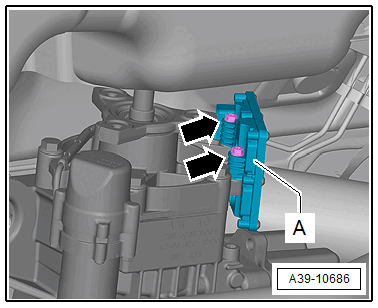

-- Remove the bolts -arrows- for the All-Wheel Drive Control Module from the all-wheel drive clutch and the All-Wheel Drive Control Module -- -A-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
