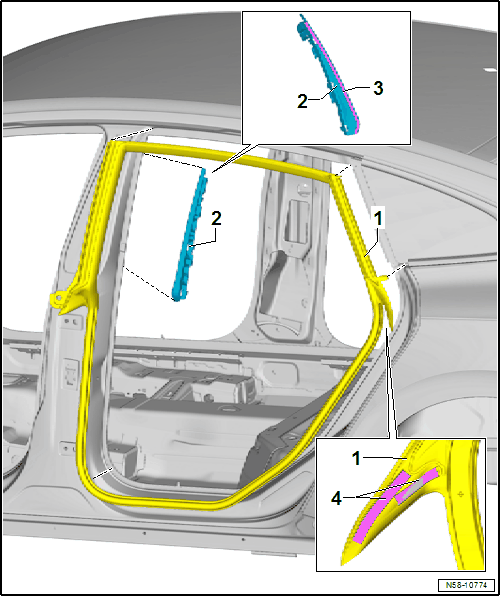

Overview - Door Seals
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Inner Door Seal
- Removing and installing. Refer to INNER DOOR SEAL, REMOVING AND INSTALLING .
- Retaining Strip
- Secured with two-sided adhesive tape and three clips on the B-pillar
- The retaining strip cannot be removed from the two-sided adhesive tape without destroying it.
- Two-Sided Adhesive Tape
- Frame component
- Two-Sided Adhesive Tape
- 46 x 6 x 1.00 mm (quantity: 1)
- 79 x 6 x 1.00 mm (quantity: 1)
- When reusing the inner door seal, cut out :D.438.515.A2
