Striker, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 6-50Nm:VAG 1331A

Fig 1: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Cylinder Head Bolt Socket:3410

Fig 2: Identifying Socket Insert 3410
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

The following describes the removal and installation of the right striker. The right side is identical.

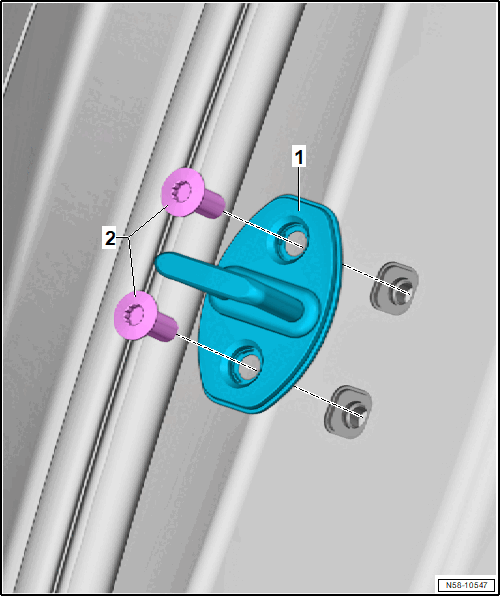

Fig 3: Exploded View Of Striker With Bolts

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
