Outer Window Shaft Strip, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

It is permissible to use assembly aids.

Do not use any striking tools to install the outer window shaft strip.

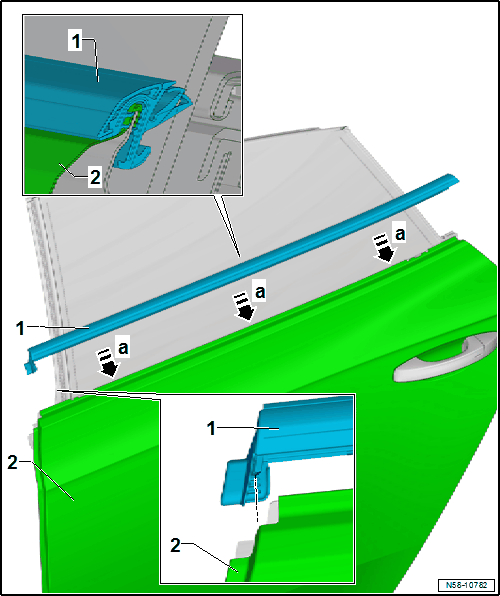

-- Push the outer window shaft strip -1- evenly by hand on the door flange -2- -a arrows-.
