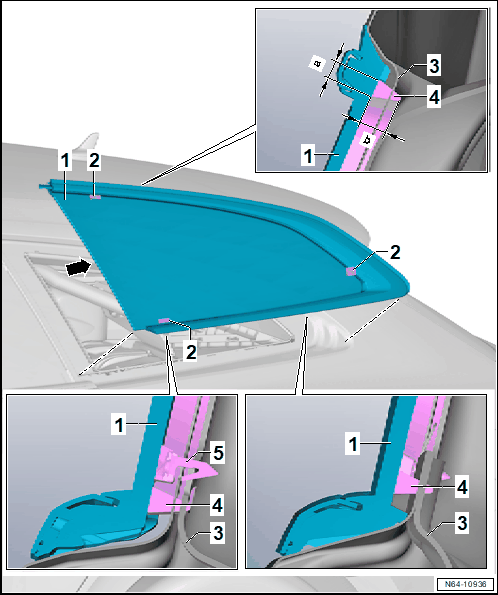

Overview - Rear Side Windows, ARTEON Shooting Brake
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Side Window
- Side window, removing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
- Clip
- Quantity: 3
- Are a component of the side window
- Body Flange
- PUR Adhesive Sealant
- Bead diameter: height = 10 mm -dimension b- width = 7 mm -dimension a- (including base coat, residual material on the window glass and window glass flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Guide
