Overview - Rear Window

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

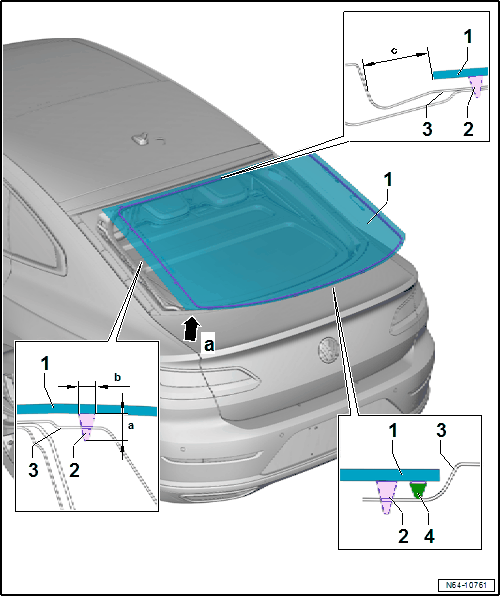

GWWN64-10761Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Rear Window
  2. PUR Adhesive Sealant
    • Bead diameter: width -dimension a- = 7 mm, height -dimension b- = 10 mm (including pre-coating, residual material on window glass and window flange)
    • Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
    • Beginning and end of the adhesive bead at the -arrow-
  3. Body Flange
  4. Spacer
