Overview - Door Seals

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

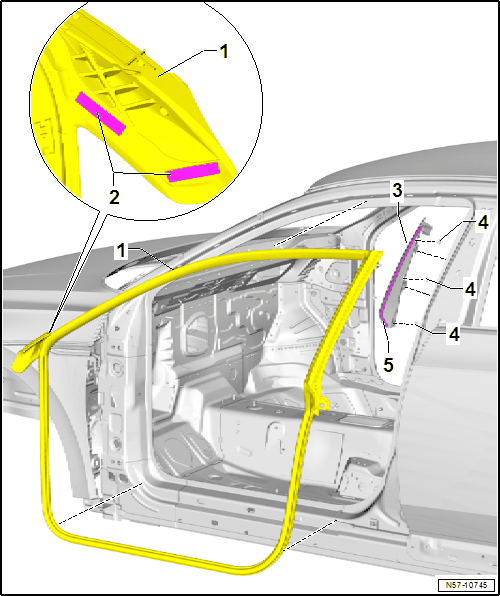

Fig 1: Exploded View Of Door Seals
GWWN57-10745Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Inner Door Seal
  2. Two-Sided Adhesive Tape
    • 30 x 6 x 1.00 mm (quantity: 2)
    • When reusing the inner door seal, cut out :D.438.515.A2
  3. Retaining Strip
    • The retaining strip cannot be removed from the two-sided adhesive tape without destroying it.
  4. Clip
    • Quantity: 3
  5. Two-Sided Adhesive Tape
    • Frame component
