Striker, Adjusting

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Torque Wrench, 6-50Nm:VAG 1331A

Fig 1: Ident ifying Torque Wrench (5 To 50 Nm) V.A.G 1331
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

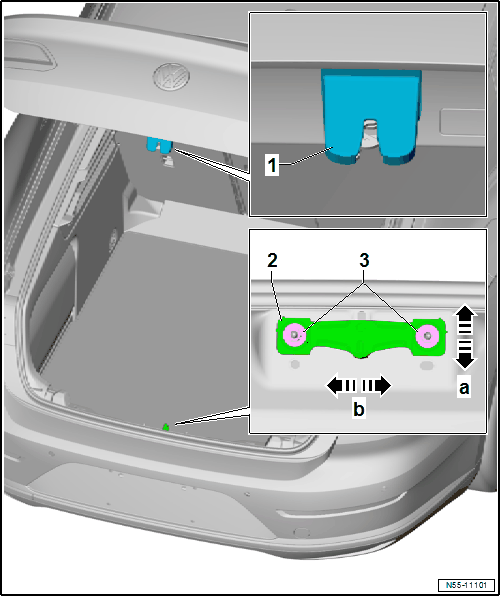

By loosening the hex nuts -3-, the striker -2- can be moved inside the oversized holes -arrow a- and -arrow b-.

Adjust the striker -1- so that the opening for the rear lid latch -1- with the rotary latch engages centered to the striker -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear lid lock trim panel. Refer to he appropriate Service Information .

-- Loosen the hex nuts -3-.

-- Move the striker -2- into the upper position and tighten the hex nuts -3-.

-- Close the rear lid and check the adjustment.

Tightening Specifications

Hex nut. Refer to OVERVIEW - REAR LID, ARTEON .
