Rear Lid Drive Unit -VX69-, REMOVING AND INSTALLING, ARTEON: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Drivetrain

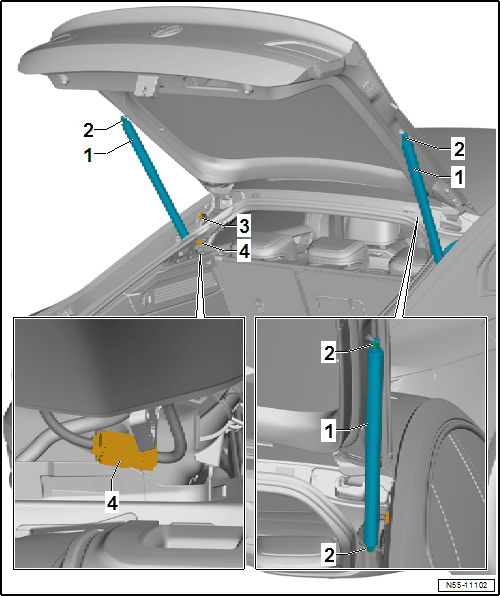

-- Push the drive unit -1- with the ball sockets onto the ball stud -2- until they audibly click into place.
-- Route the lines with the rubber grommet and carefully press on the rubber grommet -3-.
-- Connect the connectors -4- for the drive unit lines -1-.
If the Rear Lid Drive Unit -VX69- is replaced, open the applicable function in the Vehicle Diagnostic Tester.
