Overview - Rear Lid, ARTEON Shooting Brake

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

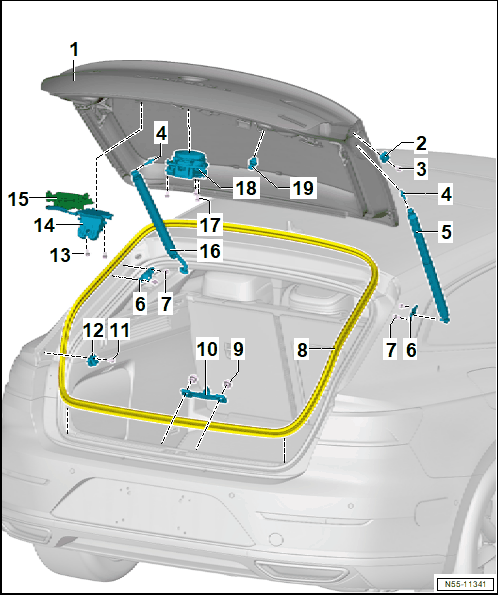

Fig 1: Exploded View Of Rear Lid

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Rear Lid
- Removing and installing. Refer to REAR LID, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
- Hinge, Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
- Bolts 10 Nm+ 45°
- Hex nut 20 Nm + 45°°
- Replace the nuts after removing.
Stop Buffer
- Left and right
- Adjusting
Bolt
- Quantity: 1 on each side
- 8 Nm
Ball Stud
- On the rear lid
- Replace after removal.
- Left and right
- New ball stud is not painted.
- Grind down the ball stud contact surface on the rear lid to bare metal before installing.
- Create the ball stud and rear lid paint structure after installing according to the procedure "paint".
- 20 Nm + 90°
Covered Gas-Filled Strut
- Check for secure fit after each removal and installation
Bracket
- For the ball stud
- Left and right
Bolt
- Quantity: 2 on each side
- 10 Nm + 90°
  NOTE:
  The bolts are micro encapsulated and must be replaced after each removal.
Seal
- Removing and installing. Refer to REAR LID SEAL, REMOVING AND INSTALLING .
Nut
- Quantity: 2
- 20 Nm
Striker
- Removing and installing. Refer to STRIKER, REMOVING AND INSTALLING .
- Adjusting. Refer to REAR LID, ADJUSTING .
Bolt
- Quantity: 1 on each side
- 8 Nm
Counterholder
- For stop buffer
Bolt
- Quantity: 2
- 8 Nm
Latch
- Removing and installing. Refer to LATCH, REMOVING AND INSTALLING .
Closing Assist
Gas-Filled Strut/Rear Lid Drive Motor
- Rear lid drive unit, removing and installing. Refer to Rear Lid Drive Unit -VX69-, REMOVING AND INSTALLING .
- Gas-Filled Strut, Removing and Installing. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
- Vent the gas-filled strut. Refer to GAS-FILLED STRUT, VENTING .
- Check for secure fit after each removal and installation
Bolts
- Quantity: 3
- 4 Nm
Actuator
- The brand emblem can be replaced separately. Refer to REAR NAME BADGES AND EMBLEMS, REPLACING .
- Removing and installing. Refer to ACTUATOR, REMOVING AND INSTALLING .
Adjusting Buffer
- Left and right
- Adjusting. Refer to REAR LID, ADJUSTING .
