Component Location Overview - Power Rear Lid
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

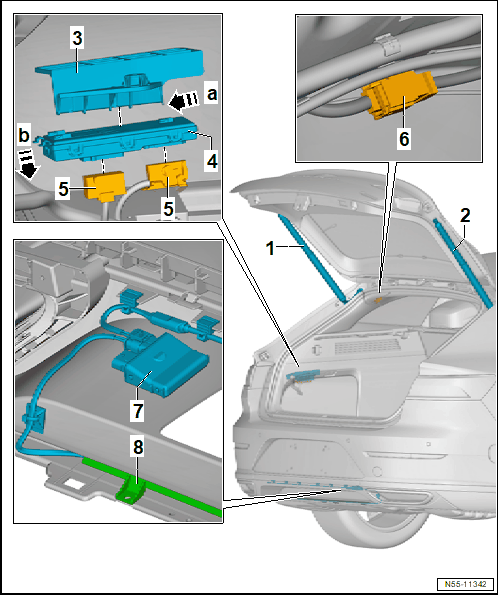

- Rear Lid Drive Unit -VX69-
- Rear Lid Drive Unit, Removing and Installing. Refer to Rear Lid Drive Unit -VX69-, REMOVING AND INSTALLING .
- Covered Gas-Filled Strut
- Only for the Arteon Shooting Brake
- Removing and installing
- Rear lid drive unit for Arteon
- Check for secure fit after each removal and installation
- Control Module Bracket
- Attached to the sheet metal flange; hooks are released from behind
- Rear Lid Control Module -J605-
-- Removing: loosen the hooks, move the control module -arrow a- and remove -arrow b-.
-- Installing: position on the bracket and move until the hooks audibly engage.
- Connector
- Connector
- For the drive unit, behind the D-pillar trim panel
- Power Rear Lid Opening Control Module -J938-
- Removing and Installing. Refer to the appropriate Service Information .
- Power Rear Lid Opening Sensors -G750/G760-
- Removing and Installing. Refer to the appropriate Service Information .
