Latch With Closing Assist, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

If the rear lid does not open, use the emergency release inside the rear lid trim panel to open it manually. Refer to the appropriate Service Information.

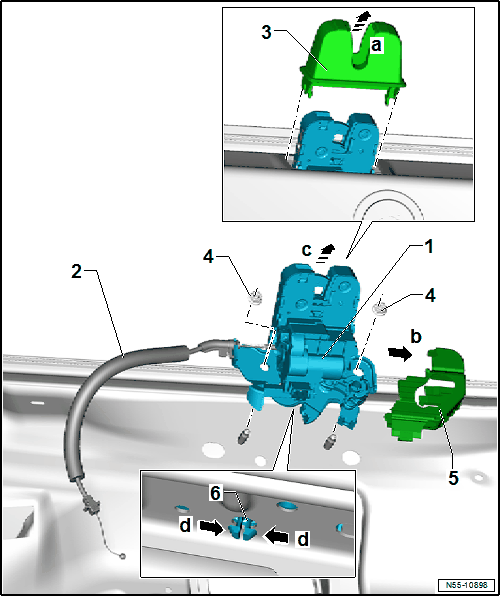

-- Remove the rear lid trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the anti-theft protection -5- -arrow b-.

-- Disconnect the connector on the latch.

-- Remove the hex nuts -4-.

-- Press the hook -6- together -d arrows- and remove the latch -1- from the rear lid -arrows c-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

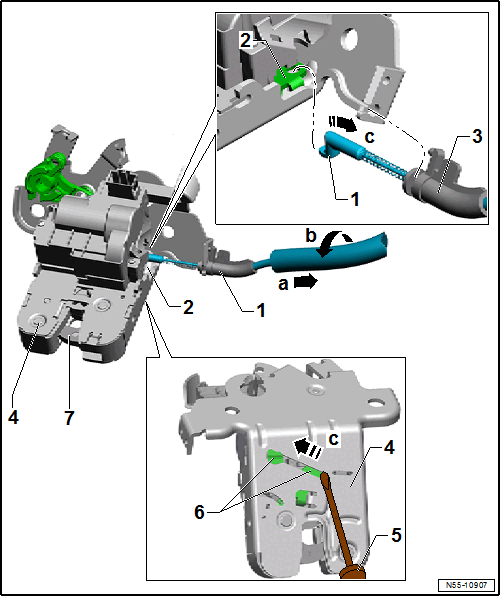

-- Lock the locking catch -7- from the latch locking mechanism -4-.

-- Push the lever -6- all the way with the screwdriver -5- in the -direction of the arrow c- and hold.

-- Remove the release cable -1- from the retainer -arrow b-.

-- Guide the release cable -1- out of the lever -2- -arrow c-.
