Latch With Closing Assist, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

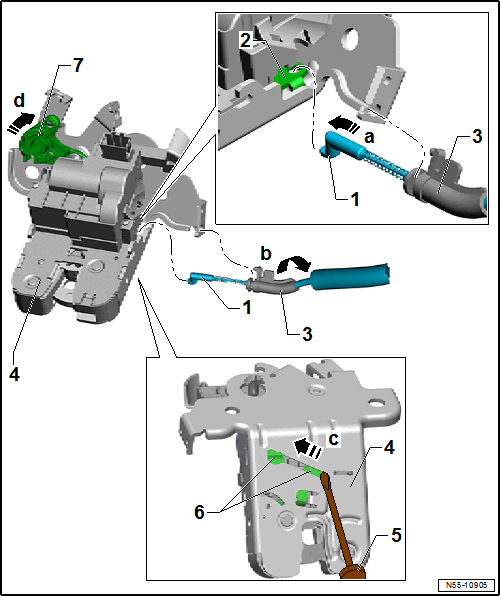

-- Push the lever -6- all the way with the screwdriver -5- in the -direction of the arrow c- and hold.
-- Thread the release cable -1- in the lever -2- -arrow a-.
-- Install the release cable -3- in the retainer -arrow b-.
-- Release the lever -6- and press the release -7- -arrow d-.

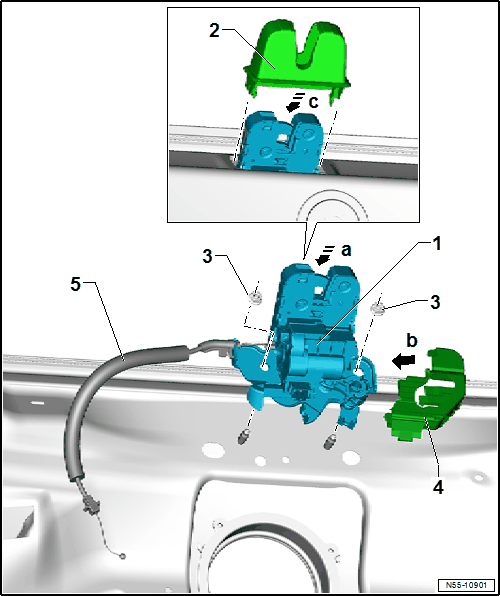

-- Insert the latch -1- into the rear lid -arrow a- and tighten the hex nuts -3-.
-- Connect the connector on the latch.
-- Slide the anti-theft protection -4- on -arrow b-.
- Perform a function test on the unlocking components before closing the rear lid.
