Actuator, Removing And Installing, Without Rearview Camera: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

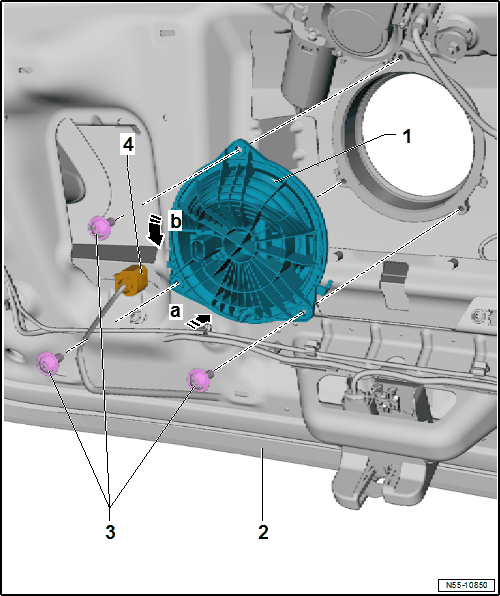

-- Insert the actuator -1- into the rear lid -2- -arrow a- and turn it slightly -arrow b-.
-- Tighten the bolts -3-.
-- Secure the connector -4- to the actuator.
- Perform a function test on the unlocking components before closing the rear lid -2-.
