Actuator, Removing And Installing, With Rearview Camera: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

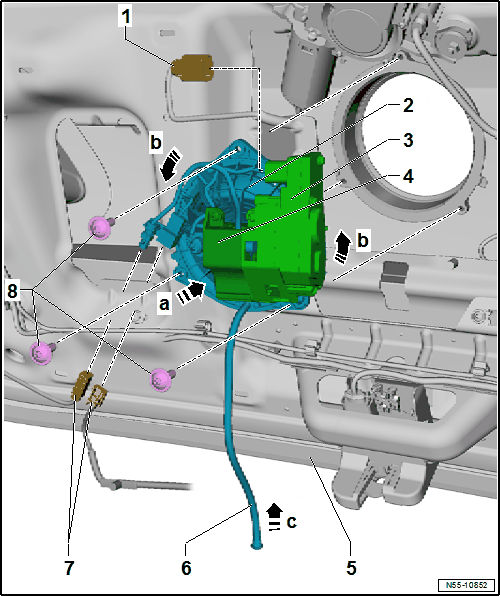

-- Insert the actuator -2- into the rear lid -5- -arrow a- and turn it slightly -b arrows-.
-- Secure the water drain hose -6- to the actuator -arrow c-.
-- Secure the connectors -1 and 7-.
- Perform a function test on the unlocking components before closing the rear lid.
