Release Cable For Left Latch, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

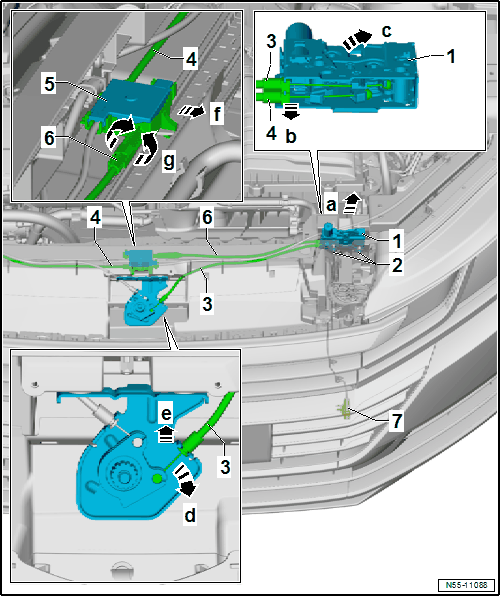

-- Engage the release cable -3- on the latch and clip in.

-- Engage the release cable -3- on the latch -1- and clip in.

-- Guide the latch -1- into the lock carrier.

-- Install the new bolts -2-.

-- Adjust the synchronous movement for the latches at the adjustment threads -6- -arrow g-.

-- A function test must be performed on the hood before it is closed.
