Release Cable Coupling With Release Cables, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

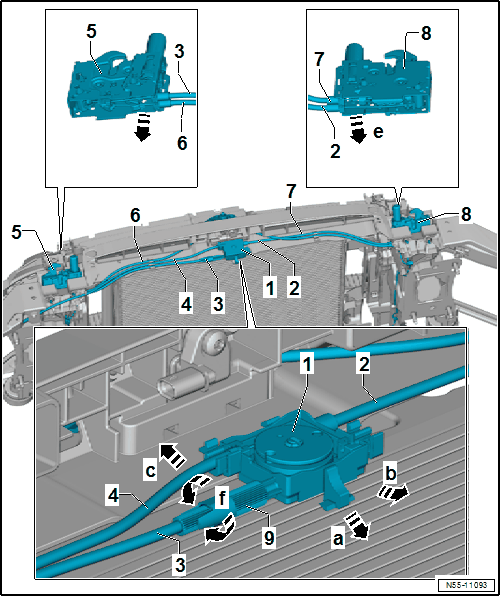

The release cable coupling -1- and the release cables -2 and 3- for the latches are one original replacement part.

GWWN55-11093Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
