Latch Release Lever, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

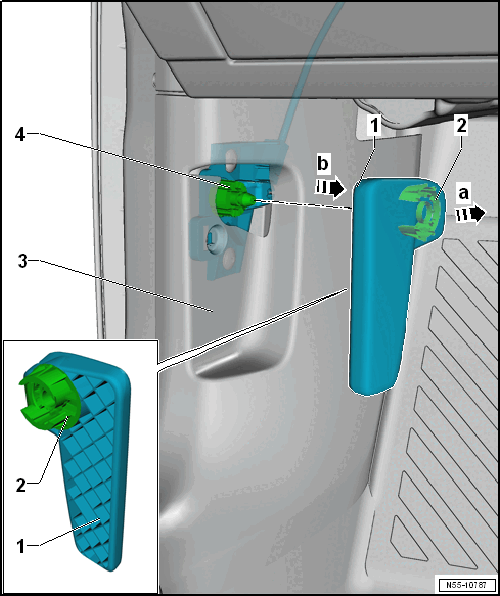

The A-pillar lower trim panel -3- is installed.

-- Slide the clip -2- into the release lever -1-.

-- Push the release lever -1- onto the mounting bracket -4-.

-- Before closing the hood, make sure the release lever and the cable are working correctly.
