Insulation, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

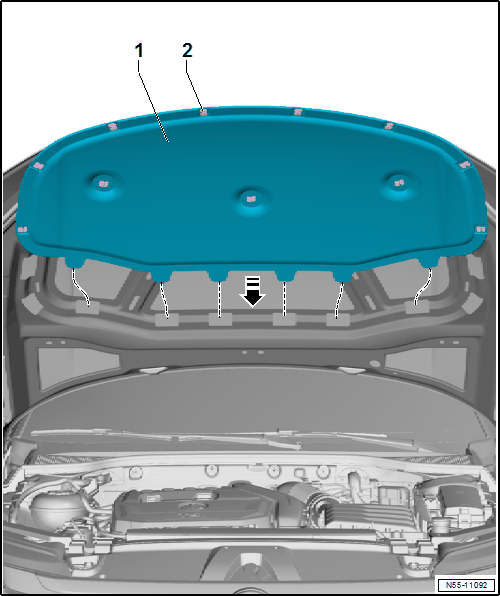

GWWN55-11092Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the noise insulation -1- with the mounting tabs -arrow- into the oblong holes.

-- Engage all of the clips -2- in the hood -1-.
