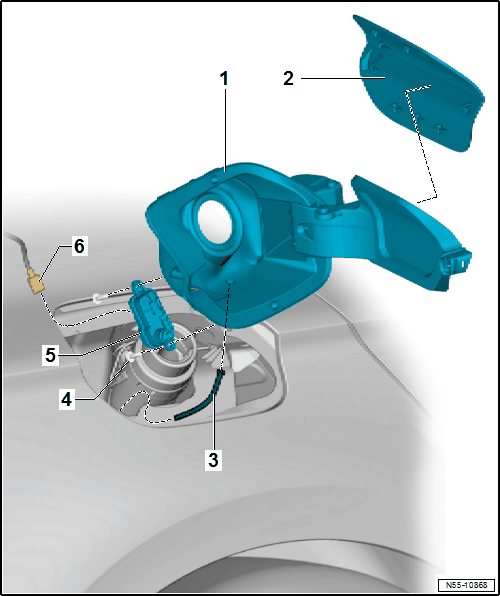

Overview - Fuel Filler Door Unit
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Fuel Filler Door Unit
- Removing and installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- Replace after removing
- Fuel Filler Door
-- Removing and installing. Refer to FUEL FILLER DOOR UNIT, REMOVING AND INSTALLING .
- Water Drain Hose
- Routed between the wheel housing and the wheel housing liner
- Bolt
- 1.5 Nm
- Fuel Filler Door Unlock Motor -V155-
- Removing and installing. Refer to Fuel Filler Door Lock Motor -V155-, REMOVING AND INSTALLING .
- Connector
