Fuel Filler Door Unit, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

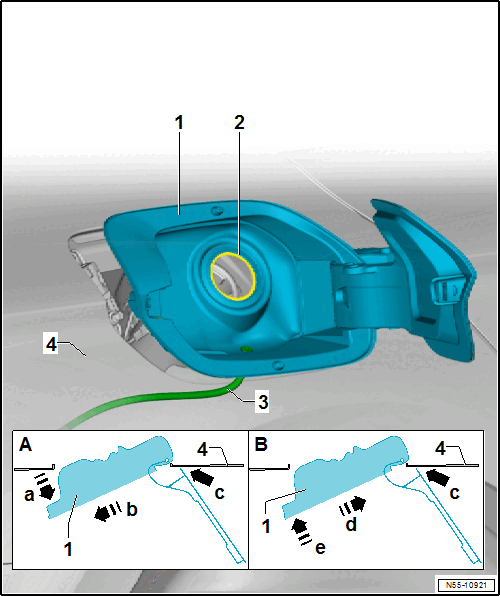

Make sure the fuel filler door unit does not rest against the side panel -arrow c-.
-- Insert the water drain hose -3- through the opening in the fuel filler door unit -1- and then pull it all the way through.
-- Slide the water drain hose -3- into the side panel -4-.
-- Push the fuel filler door unit -1- into the side panel -arrow d-.
-- Pivot the fuel filler door unit -1- into the side panel -arrow e- until the hooks engage.
-- Pull the boot over the filler neck -2-.
- Perform a function test on the unlocking components.
