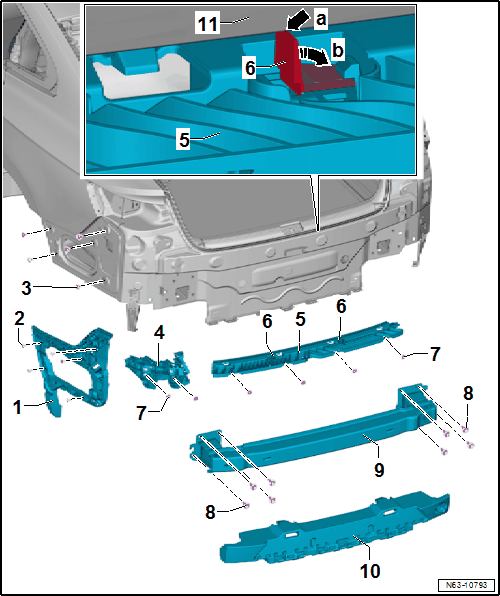

Overview - Impact Member
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
There are different versions. Refer to the appropriate Electronic Parts Information.
- Guide
- Right and left
- Is installed together with the tail lamp
- Bolts
- Quantity: 5 on each side
- For the lateral guide
- 6 Nm
- Expanding Nuts
- Quantity: 5 on each side
- Guide
- Left and right
- Is installed together with the tail lamp
- Center Guide
- Is adjusted using the spacer for the rear lid -11-
- Spacer
- Nuts
- Quantity: 4 for center guide
- 3.5 Nm
- Bolts
- Quantity: 4 on each side
- 55 Nm
- Impact Member
- Removing and installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING .
- Foam Piece
- Mounted on the impact member
- Rear Lid
