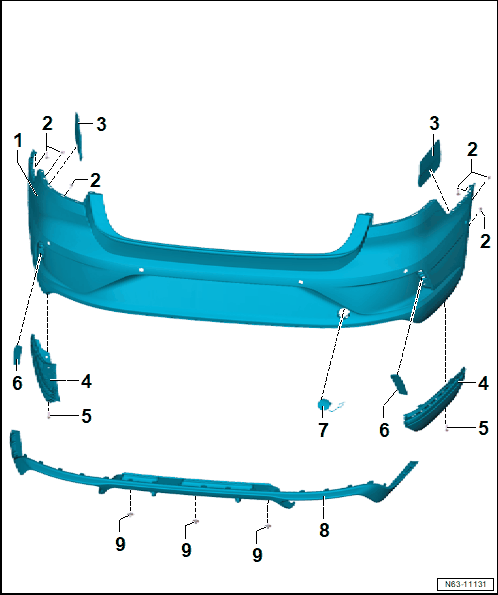

Overview - Bumper Cover, R Models
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Bumper Cover
- PP/EPDM material
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
- Bolts
- Quantity: 4 on each side
- 2 Nm
- Insulation
- Left and right
- Cut according to the template
- Extension
- Left and right
- Bolts
- Quantity: 2 on each side
- 2 Nm
- Rear Reflector
- Left and right
- Locked to bumper cover
- To be removed only with bumper cover removed
- Towing Eye Cap
- Engaged in bumper cover
- Spoiler
- PC/ABS material
- Secured in the bumper cover
- To be removed only with bumper cover removed
- Clips
- Quantity: 3
