Impact Member, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

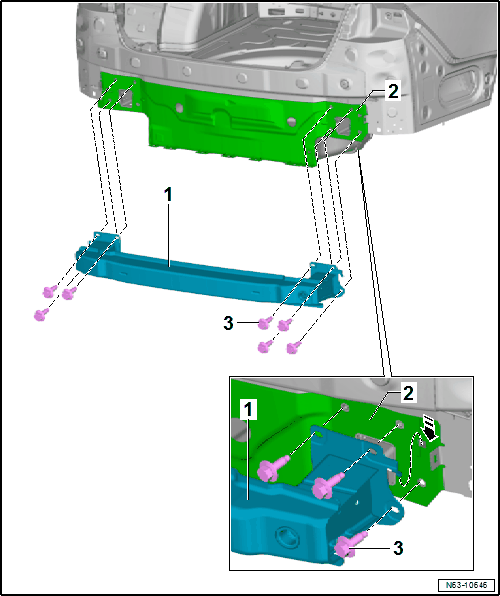

-- Remove the bolts -3-.

-- Pry the impact member -1- upward -arrow- out of the tabs in the cross panel -2-.

GWWN63-10646Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
