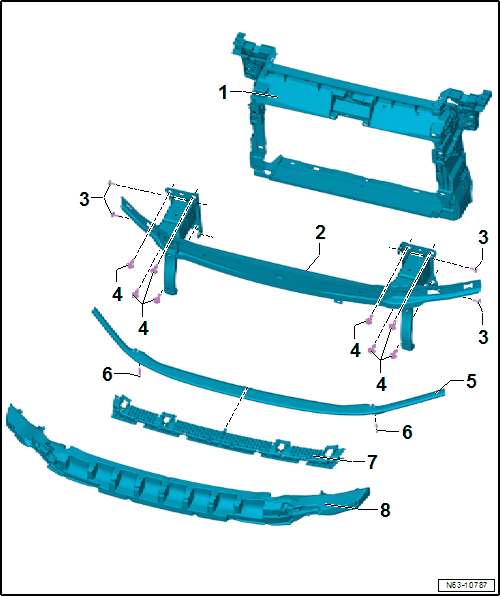

Overview - Impact Member
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Lock Carrier
- Impact Member
- Bolts
- Quantity: 2 on each side
- 8 Nm
- Bolts
- Quantity: 4 on each side
- 55 Nm
- Pedestrian Protection
- Not installed in all markets
- Pop Rivet
- Left and right
- Install using the Pop Rivet Pliers:V.A.G 1753B
- Guide
- Is attached to the pedestrian protection
- Foam Piece
- Is mounted on the impact member
- Not installed in all model versions
