Overview, Bumper Cover, Vehicles From 09/2020

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

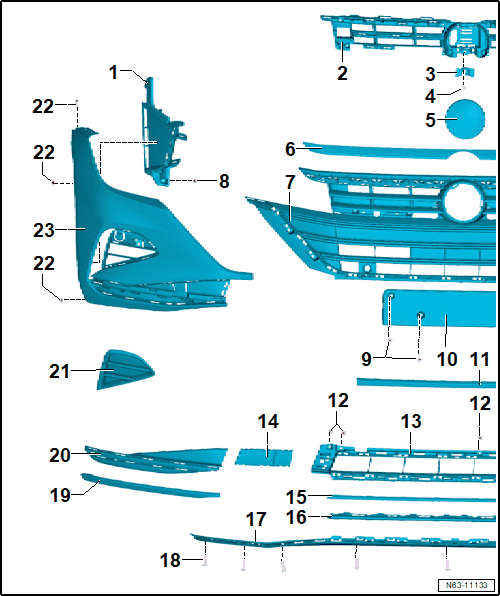

Fig 1: Exploded View Of Bumper Cover (Vehicles From 09/2020)
GWWN63-11133Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Support
    • Left and right
    • Engaged and bolted to the front bumper cover
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  2. Radiator Grille Reinforcement
    • Locked and bolted to the radiator grille
    • To be removed only with front bumper cover removed
  3. Support
    • For height compensation
  4. Bolt
    • Quantity: 1
    • 8 Nm
  5. Brand Emblem
  6. Trim
    • Painted
    • Engaged in the radiator grille
    • To be removed only with front bumper cover removed
  7. Radiator Grille
  8. Bolts
    • Left and right
    • Quantity: 1 on each side
    • 2 Nm
  9. License Plate Holder
  10. Bolts
    • Quantity: 4
    • 2 Nm
    • Different number of clips or bolts depending on the version
  11. Bolts
    • For attaching the bumper cover
    • Quantity: 3 on each side
    • 2 Nm
  12. Strip
  13. Bolts
    • For attaching the air grille
    • Quantity: 6
    • 2 Nm
  14. Cover
  15. Trim Molding
    • Center
    • Attached to the air duct and spoiler
    • To be removed only with front bumper cover removed
  16. Reinforcement
    • Attached to the air duct and spoiler
    • To be removed only with front bumper cover removed
  17. Spoiler
    • Attached to the wheel housing liner and lock carrier
    • Attached to the air duct
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  18. Bolts
    • Quantity: 10
    • 2 Nm
  19. Cover
    • Left and right
    • Locked to bumper cover
    • To be removed only with front bumper cover removed
  20. Trim Molding
    • Left and right
    • Locked to cover
    • To be removed only with front bumper cover removed
  21. Air Supply
    • Left and right
    • There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
    • Engaged and bolted to the bumper cover
    • To be removed only with front bumper cover removed
    • Removing and installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
  22. Bolts
    • Quantity: 3 on each side
    • 2 Nm
  23. Bumper Cover
    • PP/EPDM material
    • Partial sections, left, right and center
    • Partial Section, Removing and Installing. Refer to ATTACHMENTS, REMOVING AND INSTALLING .
    • Locked and bolted to other components on the front bumper cover
    • Partial sections only to be removed when the front bumper cover is removed
    • Entire Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
